Banana Shire Flood Study - DULULU AND WOWAN
Banana Shire Flood Study - DULULU AND WOWAN
Historic flooding
Flooding in Dululu is primarily governed by breakout flows from the Dee River. Wowan is situated approximately 1.5km from the Dee River floodplain and it not vulnerable to regional flooding in most storm events. Flooding in Wowan is primarily governed by local flooding from Pocket Creek.
Extent of flooding
The below table explains the multiple Annual Exceedance Probability (AEP) flood events analysed as part of the Study. AEP indicates the probability of a flood event occurring each year expressed as a percentage. Flood probability can also be expressed as an Annual Recurrence Interval (ARI).
Annual Exceedance Probability, AEP |
Approximate Annual Recurrence Interval, ARI |
Impact on Townships |
|
5% chance of occurring each year or 5% AEP |
Approximately 1 in 20 year event |
|
|
2% chance of occurring each year or 2% AEP |
Approximately 1 in 50 year event |
|
|
1% chance of occurring each year or 1% AEP |
Approximately 1 in 100 year event |
|
|
1% AEP event Climate Change (CC) sensitivity simulation or 1% + CC AEP |
Approximately 1 in 100 year event - adjusted for climate change sensitivity |
|
|
0.05% chance of occurring each year or 0.05% AEP |
Approximately 1 in 2000 year event |
|
|
A Probable Maximum Flood (PMF) event is the largest flood event that could occur at any given location. It is usually an estimated rainfall depth calculated using a range of methods and patterns. |
|
|
Considering the information above, the proposed areas of investigation to protect residents from the impact of flooding are shown below.

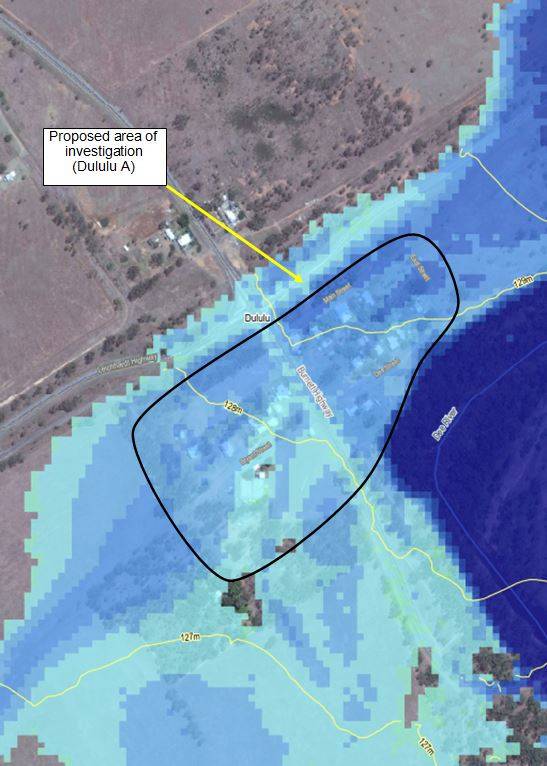

Image: Proposed area of investigation (Dululu) with 1% + CC AEP flood inundation depths shown

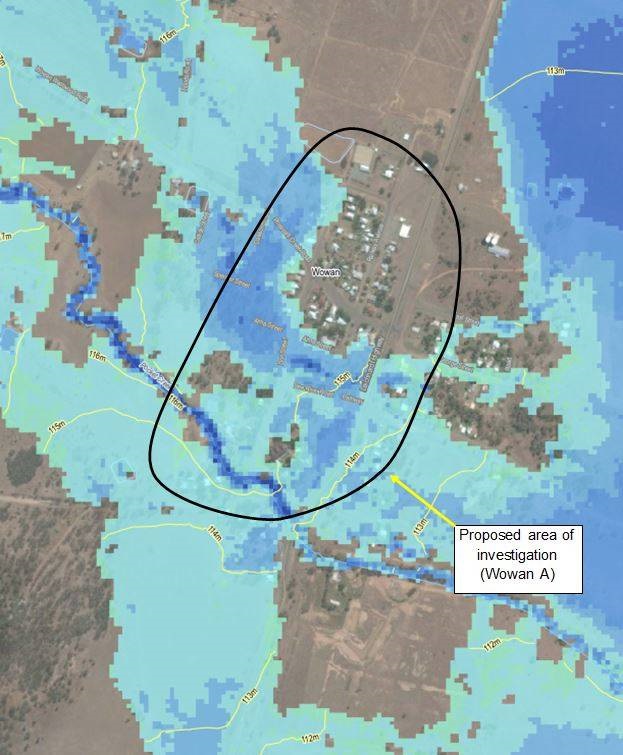

Image: Proposed area of investigation (Wowan) with 1% + CC AEP flood inundation depths shown
Potential flood mitigation options
Flood mitigation strategies are aimed at reducing residual risk, improving safety, minimising damage by reducing peak flood levels and depths, improving warning times and reducing flow velocities. This can be achieved through both structural and non-structural measures.
Some non-structural measures already form part of Council’s current Local Disaster Management Plan and Planning Scheme. After the completion of the Floodplain Management Plan, additional measures and updates to Council’s plans and schemes may occur.
Given the inundation maps above, there are multiple structural measures that could be implemented to reduce the flood risk in the proposed areas of investigation at Dululu and Wowan.
The structural measures identified that may reduce flood risk within the proposed areas of investigation include:
-
Low levees, large levees or a combination of both to provide some level of flood protection to residents
-
Individual property levees
-
Raising of existing stumped houses.
Submit your feedback
Community feedback is a vital tool when analysing the viability and acceptance of proposed areas of investigation. To submit your feedback, please fill out the survey by clicking on the link below.
When answering Question 4, please rate your most preferred option as 1, your second most preferred option as 2, your third option as 3, and least preferred option as 4.
Surveys can be downloaded and submitted by email at floodstudies@kbr.com or by mail at Reply Paid GPO BOX 633, Brisbane QLD 4001.
